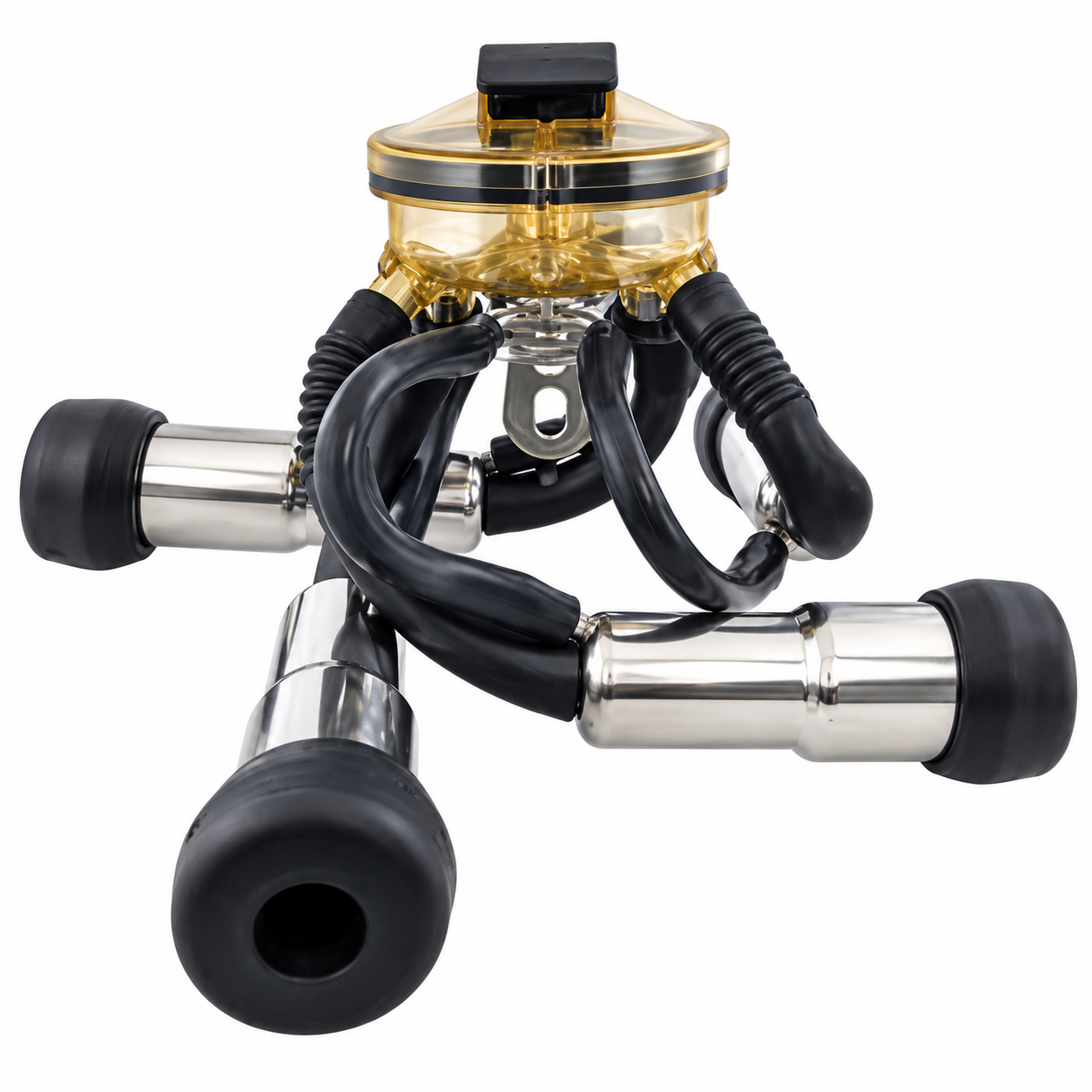

BouMatic Flo-Star Xtreme Milking Cluster

Low-Profile Cluster Design – At only 5.2 inches high, the Flo-Star Xtreme is 1.4 inches shorter than the MAX, making it particularly suitable for smaller breeds and cows with low-hanging udders.
Improved Cow Fit – Designed to accommodate wide, narrow, short or long udders, as well as uneven teat placement, providing greater flexibility across the herd.
Exceptional Strength – Engineered to withstand 7,200 lbs of direct pressure and backed by BouMatic with a two-year guarantee against breakage.
Stable Claw Vacuum – An integrated air inlet helps maintain stable vacuum at the claw, reducing cluster bouncing and supporting gentler milking at the teat ends.
Fast Milk Evacuation – Improved airflow allows milk to exit the claw quickly, helping prevent flooding even with high-producing cows.
Gentle, Quick & Complete Milking – Developed around BouMatic’s philosophy of achieving effective milk harvest while maintaining cow comfort.
Turbo Liner Technology – Rounded liner shoulders help maintain low mouthpiece vacuum, while the transitional shape and wall thickness provide comfortable teat contact and help reduce squawks and kick-offs.
Long Liner Life – Compatible Turbo liners are rated for up to 2,400 milkings, helping reduce the frequency of liner replacement.
Lightweight Composite Shells – Magnum LWX00 shells weigh only 2.8 oz, compared with 6.5 oz for the referenced stainless-steel shell, helping reduce strain on both cows and operators.
Easy Cleaning – The composite shell has no restrictions or moving parts, simplifying cleaning and reducing the amount of cleaning chemical required.
Designed for Straight Barn & Rotary Systems – BouMatic specifies the Flo-Star Xtreme for straight barn and rotary applications; it is not functionally designed for herringbone parlours.

Description

The BouMatic Flo-Star Xtreme is an advanced milking cluster engineered to deliver high-performance milk harvesting while maintaining excellent cow comfort. Its revolutionary low-profile claw design combines improved cow fit, high structural strength, stable vacuum performance and rapid milk evacuation.

At just 5.2 inches in height, the cluster fits a wide variety of udder shapes and teat positions and is particularly useful for smaller breeds and low-hanging udders. Despite its compact design, the Flo-Star Xtreme can withstand 7,200 lbs of direct pressure, providing exceptional durability for demanding dairy environments.

An integrated air inlet helps maintain stable vacuum at the claw, reducing bouncing and providing gentler conditions at the teat ends. Stable airflow also helps milk move rapidly out of the claw, allowing the Xtreme to handle milk flow from high-producing cows without flooding.

Combined with Turbo Liners and lightweight Magnum LWX00 shells, the Flo-Star Xtreme provides a complete cluster solution focused on milkability, cow comfort, operator handling, durability and efficient cleaning.

Product Models / Liner Options

Model	Recommended Application
Flo-Star Xtreme with Magnum 450TL	Recommended for dairies with good to excellent cow-preparation procedures. Best suited for claw vacuum levels of 11.1–12.3 in Hg (37.5–41.6 kPa).
Flo-Star Xtreme with Magnum 350TL	Recommended for dairies with good cow preparation and lower system vacuum levels of 11.3–12.0 in Hg (38.2–40.6 kPa).
Flo-Star Xtreme with Magnum LWX00 Shell	Lightweight composite shell configuration designed to improve cow and operator comfort. Compatible with BouMatic Magnum and Turbo liners.

Available through Dairy Solution Pvt. Ltd., providing genuine BouMatic milking clusters, liners and complete milking solutions, along with professional installation, technical guidance, genuine spare parts and dependable after-sales support for efficient dairy operations.
